Connectors

CE 24-250 (with metal housing)

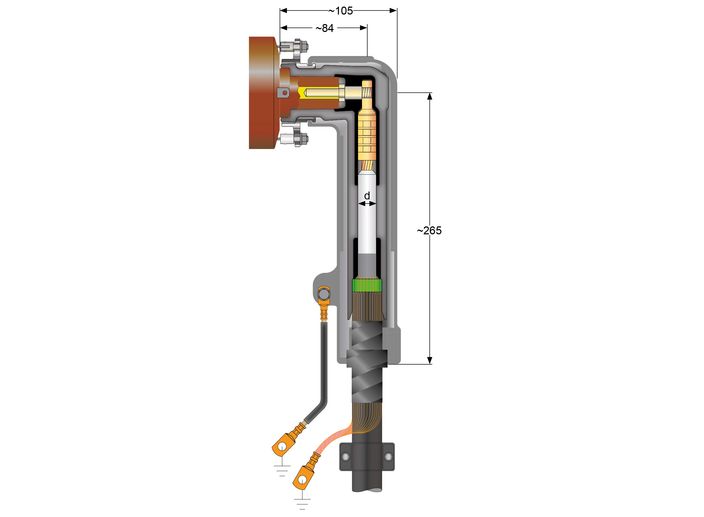

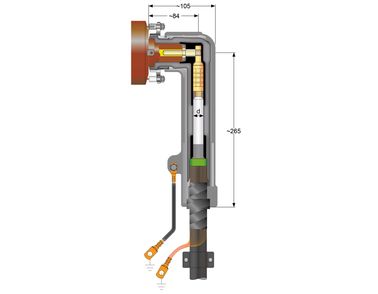

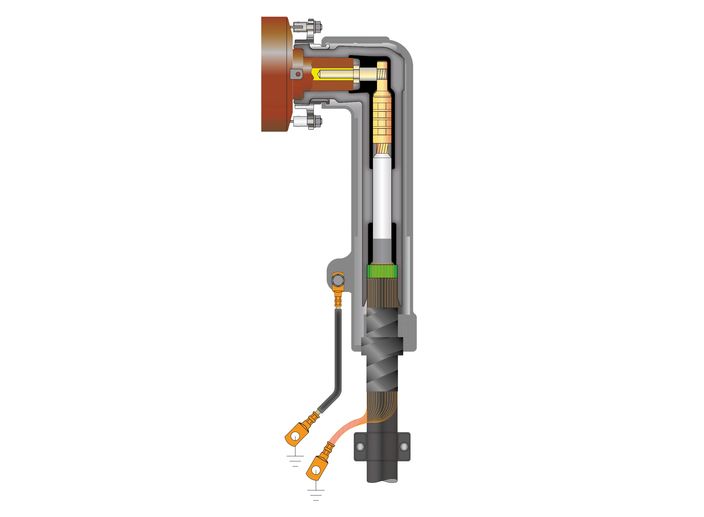

CE 24-250 Elbow Connector with Metal Housing for 24 kV Cables
Key Features:
  • Quick Installation: The CE 24-250 features a one-piece design made of high-quality silicone rubber, ensuring a fast and straightforward installation process.
  • Integrated Stress Control: Equipped with a capacitive stress control system, this connector guarantees optimal performance and longevity.
  • Versatile Connection Options: Compatible with various cable lug types, including screw type and crimp type, to suit your specific needs.
  • Mechanical Protection: Outer conductive layer and metal housing provide additional mechanical protection.
Technical Excellence:
  • High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
  • Robust Construction: Designed to endure partial discharges, alternating and direct withstand voltages, and impulse withstand voltages.
  • Thermal and Dynamic Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA and dynamic short-circuits up to 47 kA, ensuring safety and durability.
  • Cable Sheath Testing: Allows for cable sheath testing without dismantling the connector.
Scope of Delivery:
  • Cable Connectors: Made of durable silicone rubber.
  • Metal Housing: Provides additional mechanical protection.
  • Conductor Cable Lugs: Ensures secure and reliable connections.
  • Earthing Cable Lugs: Provides additional grounding.
  • Assembly Instructions: Step-by-step guide for easy installation.
  • Accessories: Includes all necessary components for a complete installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the CE 24-250 Elbow Connector is perfect for both indoor and outdoor environments. Whether you're upgrading existing systems or installing new ones, this connector offers the flexibility and durability you need.
CE 24-250 Elbow Connector with Metal Housing for 24 kV Cables
Key Features:
  • Quick Installation: The CE 24-250 features a one-piece design made of high-quality silicone rubber, ensuring a fast and straightforward installation process.
  • Integrated Stress Control: Equipped with a capacitive stress control system, this connector guarantees optimal performance and longevity.
  • Versatile Connection Options: Compatible with various cable lug types, including screw type and crimp type, to suit your specific needs.
  • Mechanical Protection: Outer conductive layer and metal housing provide additional mechanical protection.
Technical Excellence:
  • High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
  • Robust Construction: Designed to endure partial discharges, alternating and direct withstand voltages, and impulse withstand voltages.
  • Thermal and Dynamic Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA and dynamic short-circuits up to 47 kA, ensuring safety and durability.
  • Cable Sheath Testing: Allows for cable sheath testing without dismantling the connector.
Scope of Delivery:
  • Cable Connectors: Made of durable silicone rubber.
  • Metal Housing: Provides additional mechanical protection.
  • Conductor Cable Lugs: Ensures secure and reliable connections.
  • Earthing Cable Lugs: Provides additional grounding.
  • Assembly Instructions: Step-by-step guide for easy installation.
  • Accessories: Includes all necessary components for a complete installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the CE 24-250 Elbow Connector is perfect for both indoor and outdoor environments. Whether you're upgrading existing systems or installing new ones, this connector offers the flexibility and durability you need.

Produktinformation

Ytterligare produktdata, nedladdningar och certifikat

Produktinformation
Nedladdningar

Produktinformation

Max. Tvärsnitt: 120 mm²
Isolering av kärnan: 16,9 - 25 mm
Typ av kärna: Enkel kärna, Three-Core
Max. Systemspänning (Ur): 24 kV
Produkttyp: Angle
Ansökan: Switch Gear, Transformer
DIN norms: EN 50180, HD 629.1 S2, EN 50181.
Max. Tvärsnitt: 120 mm²
Isolering av kärnan: 16,9 - 25 mm
Typ av kärna: Enkel kärna, Three-Core
Max. Systemspänning (Ur): 24 kV
Produkttyp: Angle
Ansökan: Switch Gear, Transformer
DIN norms: EN 50180, HD 629.1 S2, EN 50181.
