XLPE Max. cross section: Aluminium: 35 - 240 mm², Koppar: 25 - 240 mm²
PILC Max. cross section: Aluminium: 35 - 240 mm², Koppar: 25 - 240 mm²
PILC Core insulations: 18 - 66 mm
Termination length: 900 mm
Max. outer sheath: 100 mm
Max. outer sheath: 100 mm
Max. weight: 4,1 kg
Max. outer sheath: 100 mm
Typ av kärna: Three-Core
Operating voltage Ur: 12 kV

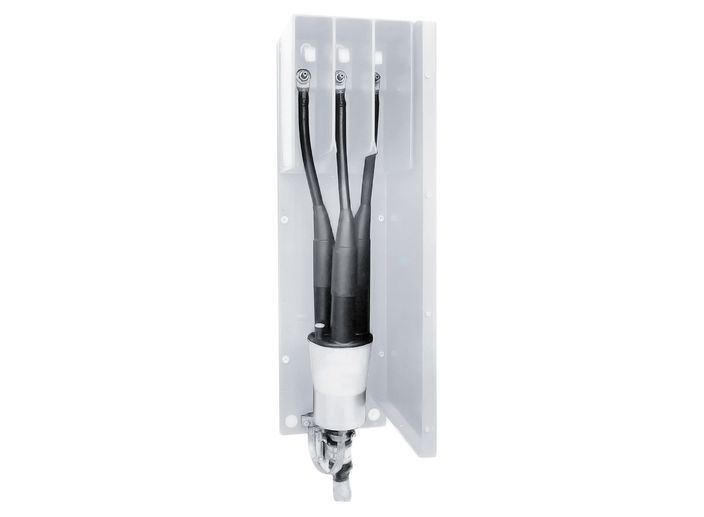

Product type: Plastic coated steel tube
Application: Indoor Termination
DIN norms: SEN 24 14 34
Additional accessories: Expansion vessel GEX, Cable lug SCL-B, Spring loaded gasket FPA
