NKT instal PLUS YDYp 450/750 V

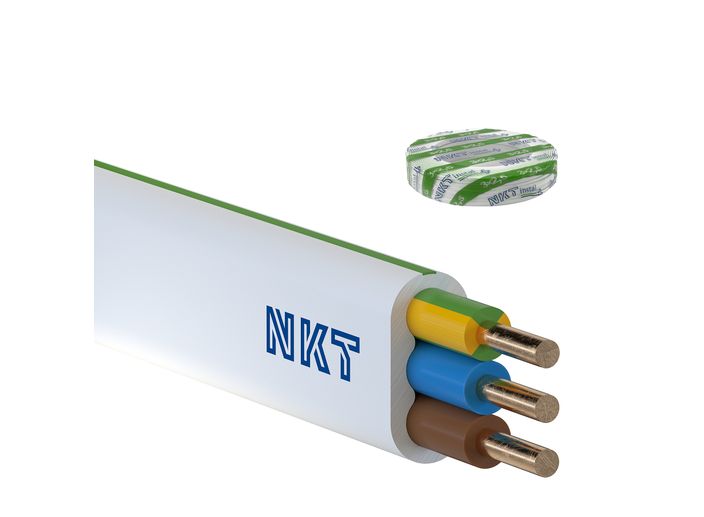

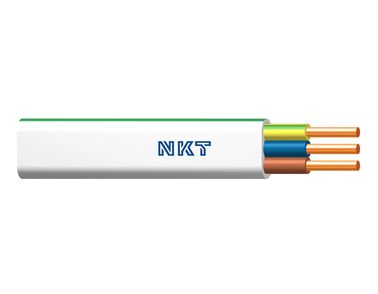

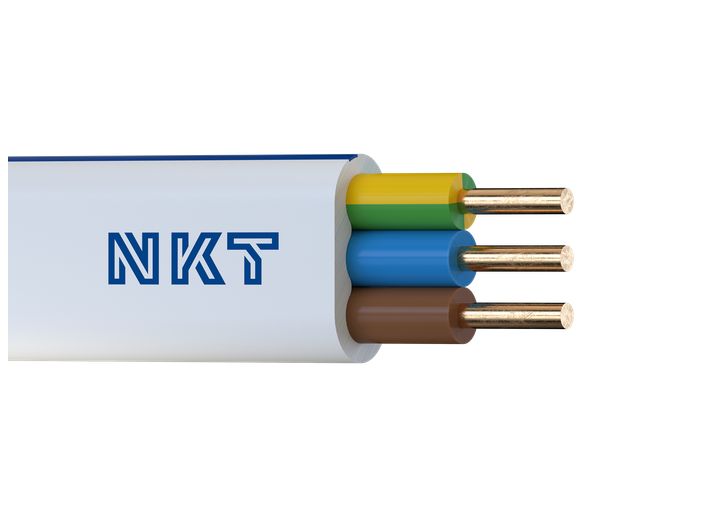

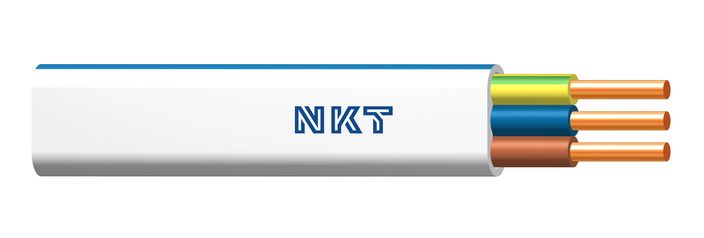

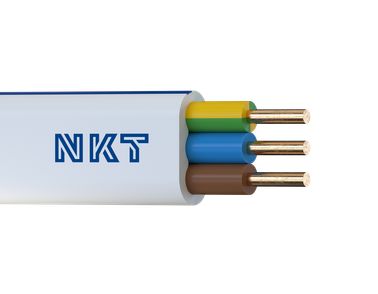

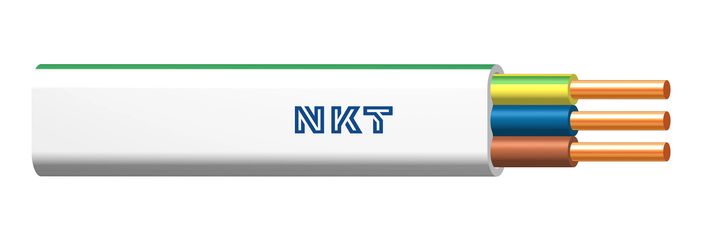

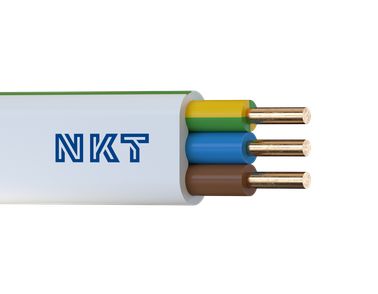

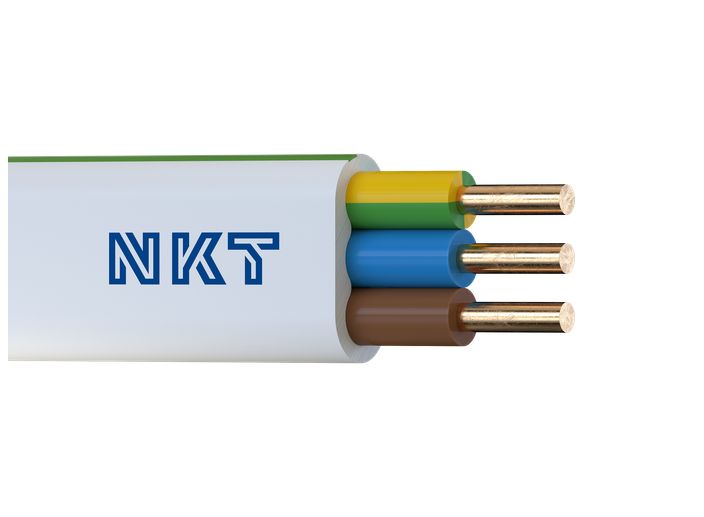

NKT instal PLUS YDYp 450/750 V is the best choice for fixed installations, offering exceptional reliability and fast installation. The colour identification allows quick differentiation between the two basic cross sections. The stripe on the outher sheath and the packaging in blue is NKT install PLUS YDYp 450/750 with a cross-section of 3×1.5 mm2. The green colour is NKT instal PLUS YDYp 450/750 with a cross-section of 3×2.5 mm2.
Key features:
· Voltage: 450/750 V
· Temperature range: -40°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)
· Min. laying temperature: -5°C
· Min. bending radius: 4d,
· Compliance: PN-E-90068, RoHS, REACH
Application:
Ideal for fixed installations indoors under, in and on plaster. The coloured stripe on the outer sheath makes it possible to distinguish between the 2 basic cross sections. Suitable for residential, commercial and industrial projects.
Construction:
· Conductor: Copper class 1
· Insulation: PVC
· Outer sheath: White PVC
Technical specifications:
· Cross-sectional range: 3x(1.5÷2.5) mm2
· Insulation thickness: 0.8 mm
· Outer sheath thickness: 1.2 mm
· Outer diameter: 5.2x10.9 mm to 5.6x12.0 mm
· Cable weight: from 102 kg/km to 136 kg/km
Upgrade your installations with NKT Instal PLUS YDYp 450/750 V for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
