Telecom energy cables

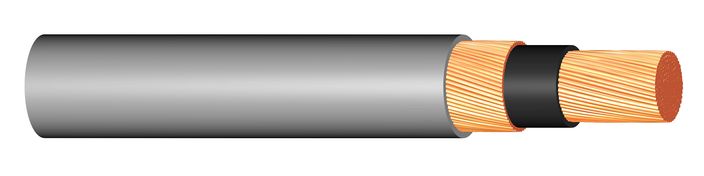

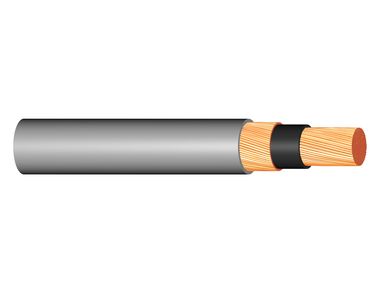

RLCL Coax
Coaxial design gives very low inductance and magnetic field for specific applications. Halogen free, flame retardant coaxial cable for power supply to telecom equipment and automotive applications. CPR and UL listed.
1/6
Coaxial design gives very low inductance and magnetic field for specific applications. Halogen free, flame retardant coaxial cable for power supply to telecom equipment and automotive applications. CPR and UL listed.
Produktinformation
Ytterligare produktdata, nedladdningar och certifikat
Produktinformation
Produktinformation
Material ledare: CU
Conductor size: 10AWG (6); 8AWG (10); 6AWG (16); 4AWG (25); 2AWG (35)
Material ytterhölje: PE
Antal kärnor: 1
Typ av kärna: Enkel kärna
Bending radius: 5 x OD
Skärm: Ja
Sunlight resistant: Ja
Shielding material: CU
Märkspänning (U0/U): 300/300 V
Max. drifttemperatur: +90°C
Min. drifttemperatur: −20°C
CPR-brandklass: Dca
Ansökan: Power cable
Standard/norm: UL listed
Halogenfritt: Ja
Cable Standard: LSZH
Insulation material: LSZH
Jacket Material: LSZH
RoHS: Ja
